Netgate 6100 BaseNetgate pfSense
The Netgate® 6100 is one of the most versatile security gateways in its class. It is ideal for home, remote workers, and small businesses who require flexible port configurations for high-speed WAN and LAN connectivity. The 6100 combines the power of an Intel C3558 Quad Core CPU with integrated QuickAssist & AES-NI, and 8 GB of memory for a snappy user experience, delivering over 18 Gbps of L3 routing across 8 Independent 1 GbE, 2.5 GbE, and 10 GbE Flexible WAN/LAN ports. Built with performance, versatility, and low total cost of ownership in mind, systems with pfSense Plus software meet the growing needs of organizations of all sizes.
LOW TOTAL OWNERSHIP COST
No artificial limitations or add-ons required to make your system fully functional.
No additional usage or feature-based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
Low power requirements to help you save money.
This system is designed for longevity.
GROWING WITH YOU
From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
This system is designed to last a lifetime.
Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering. 1
Maximum active connections: 4,000,000
EASY GUI MANAGE
Manage pfSense Plus software settings through our web-based GUI.
Secure Remote Access
Use the built-in Amazon VPC Wizard to easily create VPN connections to your Amazon EC2 cloud.
Small to medium sized business networks
Small to medium sized branch office
On-Premise device from Managed Service Provider / Managed Security Service Provider (MSP/MSSP)
Everyone looking for great performance without fan noise
Situations where the rack is not used
Situations where a rack-mounted system is not an option
Everyone with high-speed Gigabit connections
Many VPN connections
Ad blocker (pfBlockerNG)
CARP / HA
HTTP transparent / web / reverse proxy (Squid)
IP / Country block list (pfBlocker)
Packet capture / inspection
QOS / rate limiters
Software load balancer (HA Proxy)
Traffic logging, statistics, and graphs
Website blocker (pfBlocker)
- 8GB DDR4
- 16GB eMMC
- Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
- CPU Cores

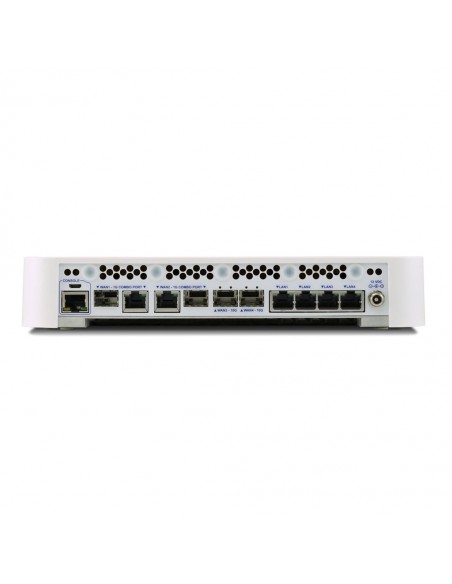

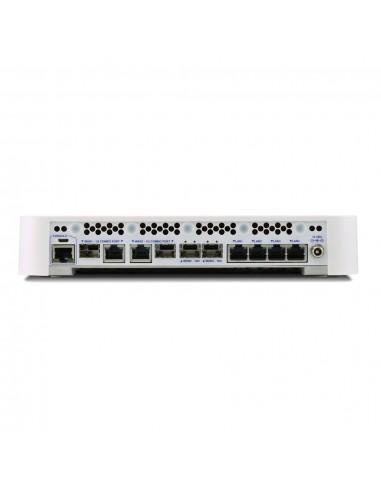

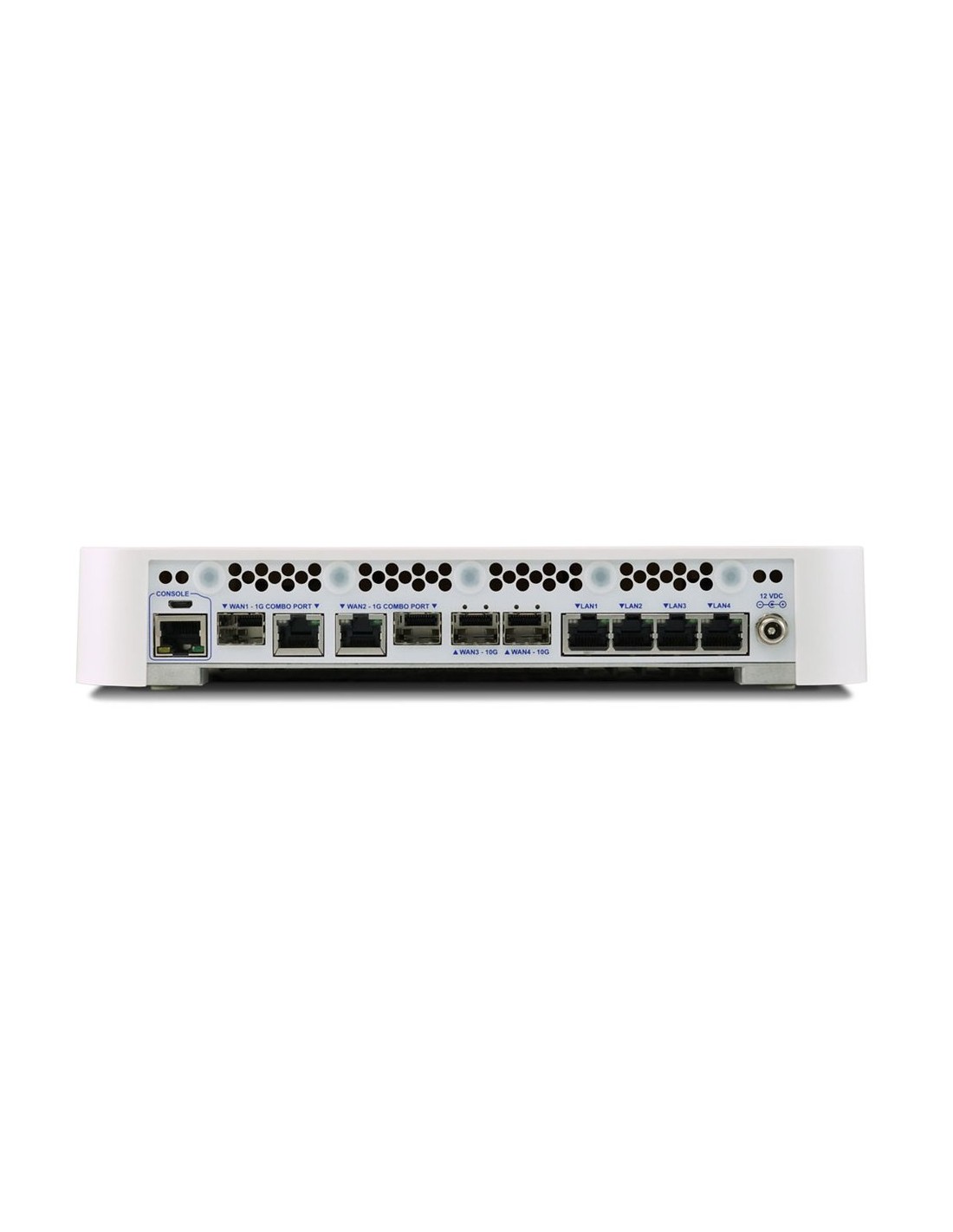

- Network Interfaces
- (2) 10 Gbps SFP+ cage (WAN)
(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)
(4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)

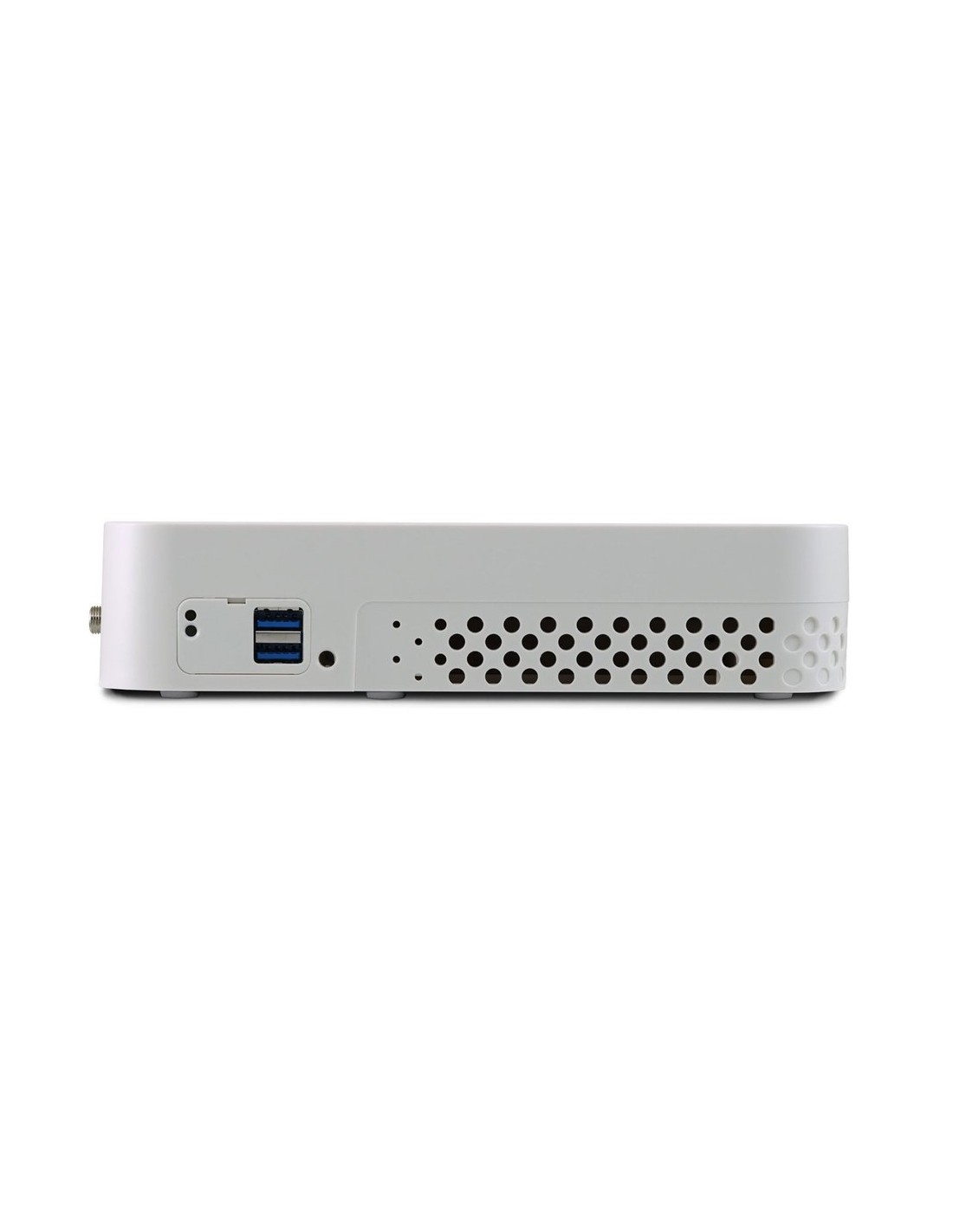

- USB Ports
- 2x USB 3.0
- Console Port
- AC Inlet: IEC320-C14 (3 PIN)
Input: DC jack with threaded barrel connector
- Desktop - Aluminum, plastic, and steel enclosure. 10 x 7.88 x 1.88 inches 254 x 200 x 47.63 mm
- Operating Temperature
- 0°C (32°F) to 40°C (104°F) - ambient
- 1 year
