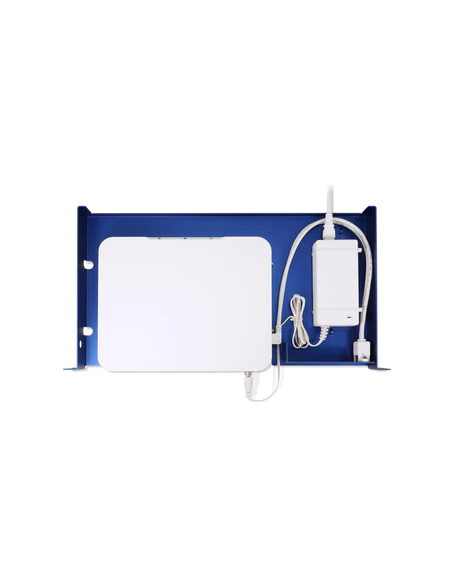

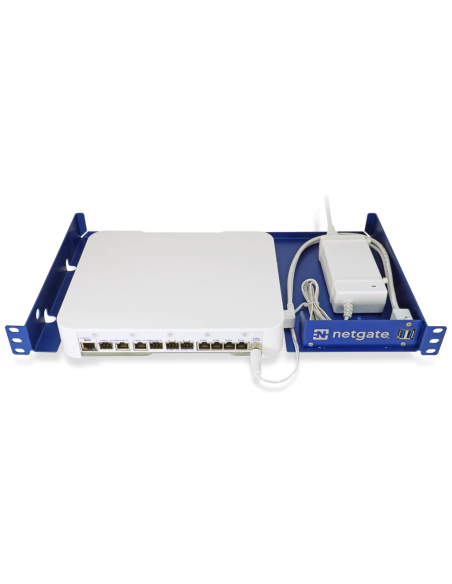

Netgate 8200 Firewall VPN Router pfSense+ If you need high-throughput firewall, routing, and VPN performance, look no further.
The Netgate® 8200 with pfSense® Plus software is the fastest Intel® Atom®-based firewall we offer, in a whisper-quiet rack mount configuration.
It is ideal for remote offices, edge deployments, managed service providers, and enterprise networks.

Extra warranty
On Order
€1,821.56
Tax excluded



LOW TOTAL OWNERSHIP COST

No artificial limitations or add-ons required to make your system fully functional.

No additional usage or feature-based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.

Low power requirements to help you save money.

This system is designed for longevity.

GROWING WITH YOU

From firewall to Unified Threat Management, get all the security features you need to protect your home or business.

This system is designed to last a lifetime.

Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.

Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering. 1

Maximum active connections: 4,000,000

EASY GUI MANAGE

Manage pfSense Plus software settings through our web-based GUI.

Secure Remote Access

Use the built-in Amazon VPC Wizard to easily create VPN connections to your Amazon EC2 cloud.

BEST FOR:

Consumers

External workers

Small to medium sized business networks

Small to medium sized branch office

On-Premise device from Managed Service Provider / Managed Security Service Provider (MSP/MSSP)

Company

Everyone looking for great performance without fan noise

Situations where the rack is not used

Situations where a rack-mounted system is not an option

Everyone with high-speed Gigabit connections

Many VPN connections

SOFTWARE FEATURES:

Ad blocker (pfBlockerNG)

Captive Portal

CARP / HA

DNS Server

DHCP Server

HTTP transparent / web / reverse proxy (Squid)

IP / Country block list (pfBlocker)

IDS/IPS

Packet capture / inspection

Port forwarding

QOS / rate limiters

Software load balancer (HA Proxy)

Traffic monitoring

Traffic logging, statistics, and graphs

Traffic shaping

VLAN

Wake-on-LAN

Website blocker (pfBlocker)

Model
Desktop
Application
Business
Memory
16GB DDR4
Storage
128GB NVMe M.2 SSD
CPU
Intel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)
CPU Cores
8
Network Interfaces
(2) 10 Gbps SFP+ WAN ports
(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports
(4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN) Intel i226 ports
USB Ports
2x USB 3.0
Console Port
rt 1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)
Power
EU Power Cord: CEE7/16 to IEC320-C7
External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.
Enclosure
1U Rack - Aluminum, plastic, and steel enclosure
Cooling
Passive
Operating Temperature
0°C (32°F) to 40°C (104°F) - ambient
Warranty
1 year
