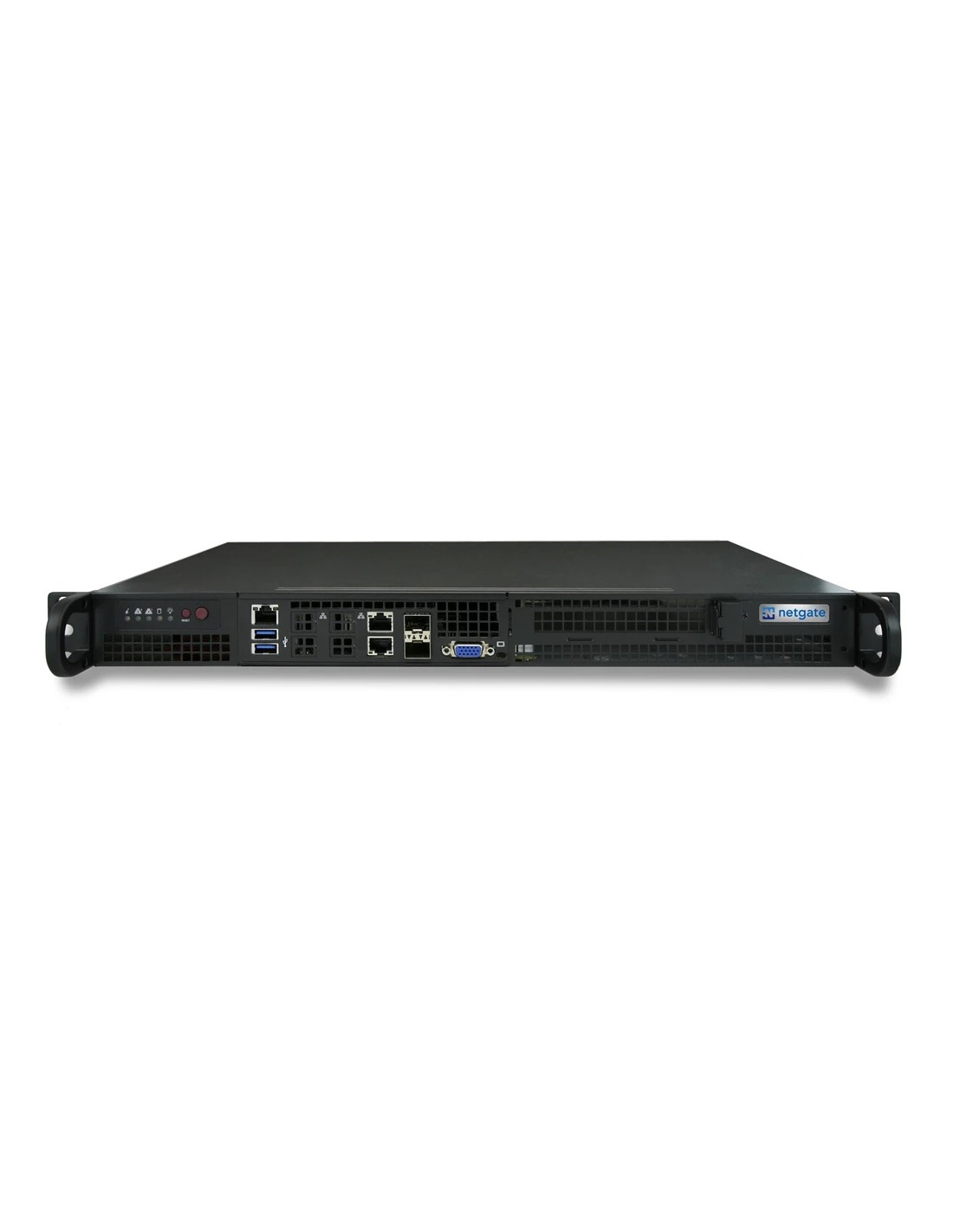

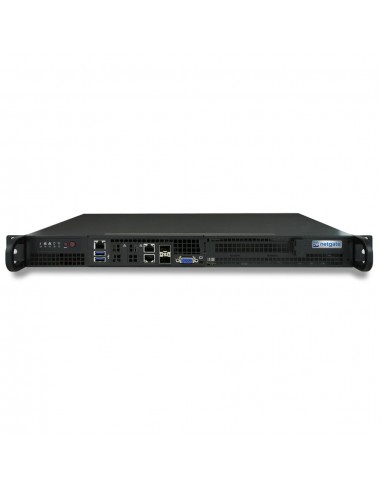

Netgate 1537 1U MaxNetgate pfSense
The Netgate 1537 1U pfSense Security Gateway Appliance is a perfect solution for midsized to large companies to support multi-WAN, high availability, VPN, reporting and surveillance, etc...
With preloaded pfSense-software en 10 Gbps SFP+ ports the Netgate 1537 1U is a fast network security solution, which isn't held back by traditional yearly fees and/or license costs. This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.
EASY TO USE
Preinstalled with pfSense® software, usable out of the box.
1U 19' rack form-factor with High Availability option
Easy GUI management. Manage pfSense settings through a web-based GUI.
LOW TOTAL COST OF OWNERSHIP
No artifical limits or add-ons required to make your system fully functional.
No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc
Low power requirements to help save you money.
Flexibele configuration support for VPN, load balancing, reporting en monitoring.
Easy package management system with powerfull functions and extensions.
SAFE EXTERNAL ACCESS
Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security, or connect to the Cloud.
Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.
- 32GB DDR4
- 500GB M.2 SSD
- Intel "Xeon-DE" D-1537, 1.7 GHz FCBGA 1667 supported SoC
- CPU Cores
- Network Interfaces
- 1x Realtek RTL8201N PHY (dedicated IPMI)
Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
Dual LAN via SoC 10GbE SFP+
Supports 10GbE (SFP+), 100BASE-TX, and 1000BASE-T (RJ45)
Virtual Machine Device Queues reduce I/O overhead
- Network Expansion Options
- 2-port Chelsio SFP+ Expansion
4-Port Intel GbE
- USB Ports
- 2x USB 3.0
- Console Port
- 200W Internal Power Supply, 100~240V, 50-60Hz, 2.6 Amp Max
- Power Consumption
- 20W (idle)
- Standard 19" 1U rack mount 17.2" (437mm) x 1.7" (43mm) x 9.85" (250mm)
- Operating Temperature
- 0°C to 60°C (32°F to 140°F)
- CE Emission, FCC, RoHS, UL
- 1 year
